Quick Start

In Loman, a computation is represented as a set of nodes. Each node can be either an input node, which must be provided, or a calculation node which can be calculated from input nodes or other calculation nodes. In this quick start guide, we walk through creating computations in Loman, inspecting the results and controlling recalculation.

To keep things simple, the examples will perform simple calculations on integers. Our focus initially is on the dependency between various calculated items, rather than the calculations themselves, which are deliberately trivial. In a real system, it is likely that rather than integers, we would be dealing with more interesting objects such as Pandas DataFrames.

Creating and Running a Computation

Let’s start by creating a computation object and adding a couple of nodes to it:

>>> comp = Computation()
>>> comp.add_node('a')
>>> comp.add_node('b', lambda a: a + 1)

Loman’s computations have a method draw which lets us easily see a visualization of the computation we just created:

>>> comp.draw()

Loman gives us a quick and easy way to visualize our computations as a graph data structure. Each node of the graph is a colored oval, representing an input value or calculated value, and each edge (line) shows where the calculation of one node depends on another. The graph above shows us that node b depends on node a. Both are colored blue as neither has a value. Let’s insert a value into node a:

>>> comp.insert('a', 1)
>>> comp.draw()

Now we see that node a is colored dark green, indicating that it is up-to-date, since we just inserted a value. Node b is colored light green, indicating it is computable - that is to say that it is not up-to-date, but it can immediately be calculated. Let’s do that:

>>> comp.compute_all()

Now b is up-to-date, and is also colored dark green.

Inspecting Nodes

Loman gives us several ways of inspecting nodes. We can use the value and state methods:

>>> comp.value('b')
2
>>> comp.state('b')
<States.UPTODATE: 4>

Or we can use v and s to access values and states with attribute-style access. This method of access works well with the auto-complete feature in IPython and Jupyter Notebook, but it is only able to access nodes with valid alphanumeric names:

>>> comp.v.b
2
>>> comp.s.b
<States.UPTODATE: 4>

The []-operator provides both the state and value:

>>> comp['b']
NodeData(state=<States.UPTODATE: 4>, value=2)

The value and state methods and v and s accessors can also take lists of nodes, and will return corresponding lists of values and states:

>>> comp.value(['a', 'b'])
[1, 2]
>>> comp.state(['a', 'b'])
[<States.UPTODATE: 4>, <States.UPTODATE: 4>]
>>> comp.v[['a', 'b']]
[1, 2]
>> comp.s[['a', 'b']]
[<States.UPTODATE: 4>, <States.UPTODATE: 4>]

There are also methods to_dict() and to_df() which get the values of all the nodes:

>>> comp.to_dict()
{'a': 1, 'b': 2}
>>> comp.to_df()
             state  value  is_expansion
a  States.UPTODATE      1           NaN
b  States.UPTODATE      2           NaN

More Ways to Define Nodes

In our first example, we used a lambda expression to provide a function to calculate b. We can also provide a named function. The name of the function is unimportant. However, the names of the function parameters will be used to determine which nodes should supply inputs to the function:

>>> comp = Computation()
>>> comp.add_node('input_node')
>>> def foo(input_node):
...   return input_node + 1
...
>>> comp.add_node('result_node', foo)
>>> comp.insert('input_node', 1)
>>> comp.compute_all()
>>> comp.v.result_node
2

We can explicitly specify the mapping from parameter names to node names if we require, using the kwds parameter. And a node can depend on more than one input node. Here we have a function of two parameters. The argument to kwds can be read as saying “Parameter a comes from node x, parameter b comes from node y”:

>>> comp = Computation()
>>> comp.add_node('x')
>>> comp.add_node('y')
>>> def add(a, b):
...   return a + b
...
>>> comp.add_node('result', add, kwds={'a': 'x', 'b': 'y'})
>>> comp.insert('x', 20)
>>> comp.insert('y', 22)
>>> comp.compute_all()
>>> comp.v.result
42

For input nodes, the add_node method can optionally take a value, rather than having to separately call the insert method:

>>> comp = Computation()
>>> comp.add_node('a', value=1)
>>> comp.add_node('b', lambda a: a + 1)
>>> comp.compute_all()
>>> comp.v.result
2

Finally, the function supplied to add_node can have *args or **kwargs arguments. When this is done, the args and kwds provided to add_node control what will be placed in *args or **kwargs:

>>> comp = Computation()
>>> comp.add_node('x', value=1)
>>> comp.add_node('y', value=2)
>>> comp.add_node('z', value=3)
>>> comp.add_node('args', lambda *args: args, args=['x', 'y', 'z'])
>>> comp.add_node('kwargs', lambda **kwargs: kwargs, kwds={'a': 'x', 'b': 'y', 'c': 'z'})
>>> comp.compute_all()
>>> comp.v.args
(1, 2, 3)
>>> comp.v.kwargs
{'a': 1, 'b': 2, 'c': 3}

Controlling Computation

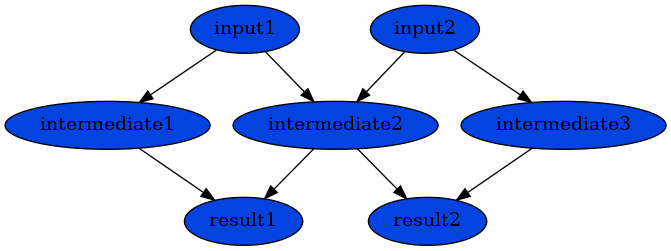

For these examples, we define a more complex Computation:

>>> comp = Computation()
>>> comp.add_node('input1')
>>> comp.add_node('input2')
>>> comp.add_node('intermediate1', lambda input1: 2 * input1)
>>> comp.add_node('intermediate2', lambda input1, input2: input1 + input2)
>>> comp.add_node('intermediate3', lambda input2: 3 * input2)
>>> comp.add_node('result1', lambda intermediate1, intermediate2: intermediate1 + intermediate2)
>>> comp.add_node('result2', lambda intermediate2, intermediate3: intermediate2 + intermediate3)
>>> comp.draw()

We insert values into input1 and input2:

>>> comp.insert('input1, 1)
>>> comp.insert('input2', 2)
>>> comp.draw()

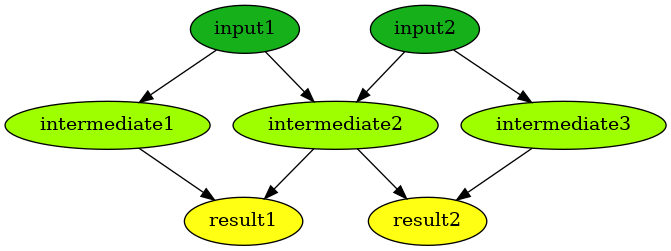

As before, we see that the nodes we have just inserted data for are colored dark green, indicating they are up-to-date. The intermediate nodes are all colored light green, to indicate that they are computable - that is that their immediate upstream nodes are all up-to-date, and so any one of them can be immediately calculated. The result nodes are colored yellow. This means that they are stale - they are not up-to-date, and they cannot be immediately calculated without first calculating some nodes that they depend on.

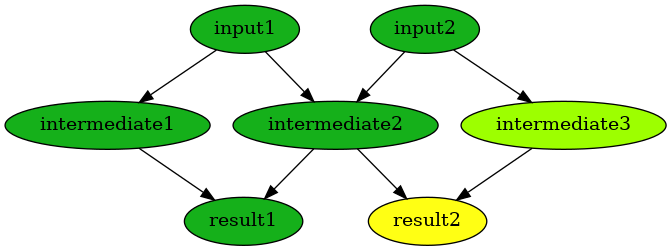

We saw before that we can use the compute_all method to calculate nodes. We can also specify exactly which nodes we would like calculated using the compute method. This method will calculate any upstream dependencies that are not up-to-date, but it will not calculate nodes that do not need to be calculated. For example, if we request the result1 be calculated, intermediate1 and intermedate2 will be calculated first, but intermediate3 and result2 will not be calculated:

>>> comp.compute('result1')
>>> comp.v.result1
5
>>> comp.draw()

Inserting new data

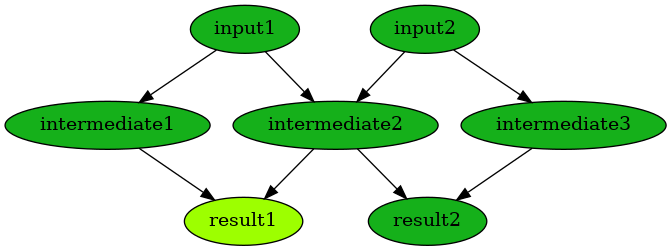

Often, in real-time systems, updates will come periodically for one or more of the inputs to a computation. We can insert this updated data into a computation and Loman will corresponding mark any downstream nodes as stale or computable i.e. no longer up-to-date. Continuing from the previous example, we insert a new value into input1:

>>> comp.insert('input1', 2)
>>> comp.draw()

And again we can ask Loman to calculate nodes in the computation, and give us results. Here we calculate all nodes:

>>> comp.compute_all()
>>> comp.v.result1
8

Overriding calculation nodes

In fact, we are not restricted to inserting data into input nodes. It is perfectly possible to use the insert method to override the value of a calculated node also. The overridden value will remain in place until the node is recalculated (which will happen after one of its upstreams is updated causing it to be marked stale, or when it is explicitly marked as stale, and then recalculated). Here we override intermediate2 and calculate result2 (note that result1 is not recalculated, because we didn’t ask anything that required it to be):

>>> comp.insert('intermediate2', 100)
>>> comp.compute('result2')
>>> comp.v.result2
106
>>> comp.draw()

Changing calculations

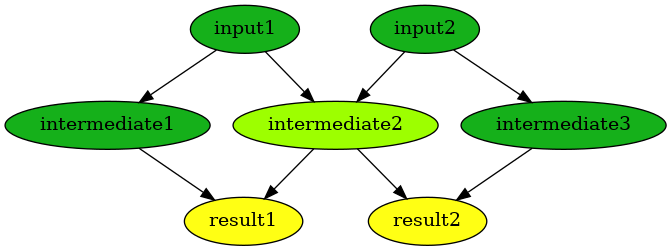

As well as inserting data into nodes, we can update the computation they perform by re-adding the node. Node states get updated appropriately automatically. For example, continuing from the previous example, we can change how intermediate2 is calculated, and we see that nodes intermediate2, result1 and result2 are no longer marked up-to-date:

>>> comp.add_node('intermediate2', lambda input1, input2: 5 * input1 + 2 * input2)
>>> comp.draw()

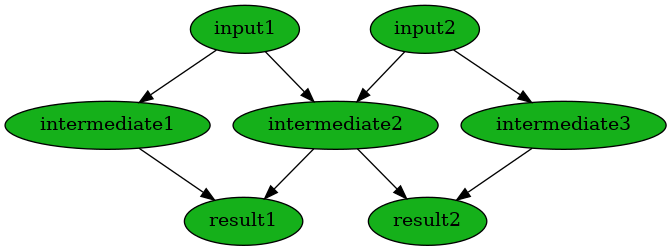

>>> comp.compute_all()
>>> comp.draw()

>>> comp.v.result1
18
>>> comp.v.result2
20

Adding new nodes

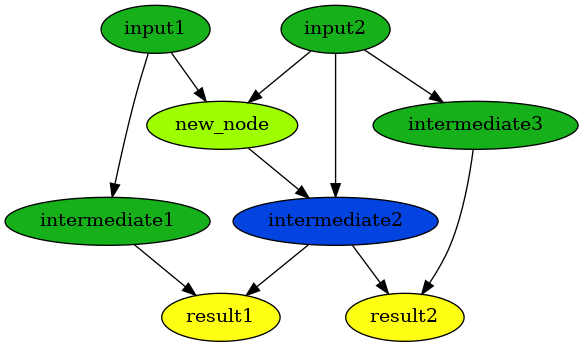

We can even add new nodes, and change the dependencies of existing calculations. So for example, we can create a new node called new_node, and have intermediate2 depend on that, rather than input1. It’s confusing when I describe it with words, but Loman’s visualization helps us keep tabs on everything - that’s its purpose:

>>> comp.add_node('new_node', lambda input1, input2: input1 / input2)
>>> comp.add_node('intermediate2', lambda new_nod, input2: 5 * new_nod + 2 * input2)
>>> comp.draw()

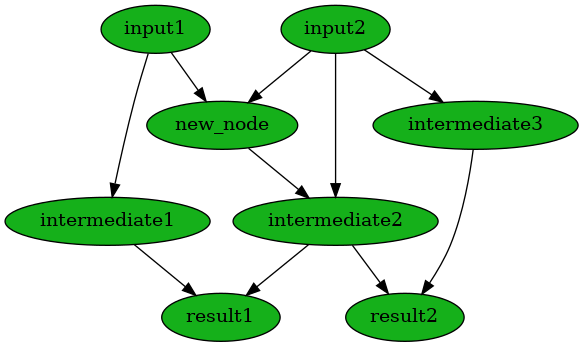

>>> comp.compute_all()
>>> comp.draw()

>>> comp.v.result1
13.0
>>> comp.v.result2
15.0

Error-handling

If trying to calculate a node causes an exception, then Loman will mark its state as error. Loman will also retain the exception and the stacktrace that caused the exception, which can be useful in large codebases. Downstream nodes cannot be calculated of course, but any other nodes that could be calculated will be. This allows us to discover multiple errors at once, avoiding the frustration of lenthgy-run-discover-next-error cycles:

>>> comp = Computation()
>>> comp.add_node('a', value=1)
>>> comp.add_node('b', lambda a: a + 1)
>>> comp.add_node('c', lambda a: a / 0) # This will cause an exception
>>> comp.add_node('d', lambda b, c: b + c)
>>> comp.compute_all()
>>> comp.draw()

>>> comp.s.c
<States.ERROR: 5>
>>> comp.v.c.exception
ZeroDivisionError('division by zero')
>>> print(comp.v.c.traceback)
Traceback (most recent call last):
  File "C:\ProgramData\Anaconda3\lib\site-packages\loman\computeengine.py", line 211, in _compute_node
  File "<ipython-input-79-028365426246>", line 4, in <lambda>
    comp.add_node('c', lambda a: a / 0) # This will cause an exception
ZeroDivisionError: division by zero

We can use Loman’s facilities of changing calculations or overriding values to quickly correct errors in-place, and without having to recompute upstreams, or wait to redownload large data-sets:

>>> comp.add_node('c', lambda a: a / 1)
>>> comp.compute_all()
>>> comp.draw()

Missing upstream nodes

Loman has a special state, “Placeholder” for missing upstream nodes. This can occur when a node depends on a node that was not created, or when an existing node was deleted, which can be done with the delete_node method:

>>> comp = Computation()
>>> comp.add_node('b', lambda a: a)
>>> comp.draw()

>>> comp.s.a
<States.PLACEHOLDER: 0>
>>> comp.add_node('a')
>>> comp.draw()

>> comp.delete_node('a')

A final word

This quickstart is intended to help you understand how to create computations using Loman, how to update inputs, correct errors, and how to control the execution of your computations. The examples here are deliberately contrived to emphasize the dependency structures that Loman lets you create. The actual calculations performed are deliberately simplified for ease of exposition. In reality, nodes are likely to be complex objects, such as Numpy arrays, Pandas DataFrames, or classes you create, and calculation functions are likely to be longer than one line. In fact, we recommend that Loman nodes are fairly coarse grained - you should have a node for each intermediate value in a calculation that you might care to inspect or overide, but not one for each line of sequential program.

For more recommendations on how to use Loman in various contexts, you are invited to read the next section, Strategies for using Loman in the Real World.
